UPS Battery Systems

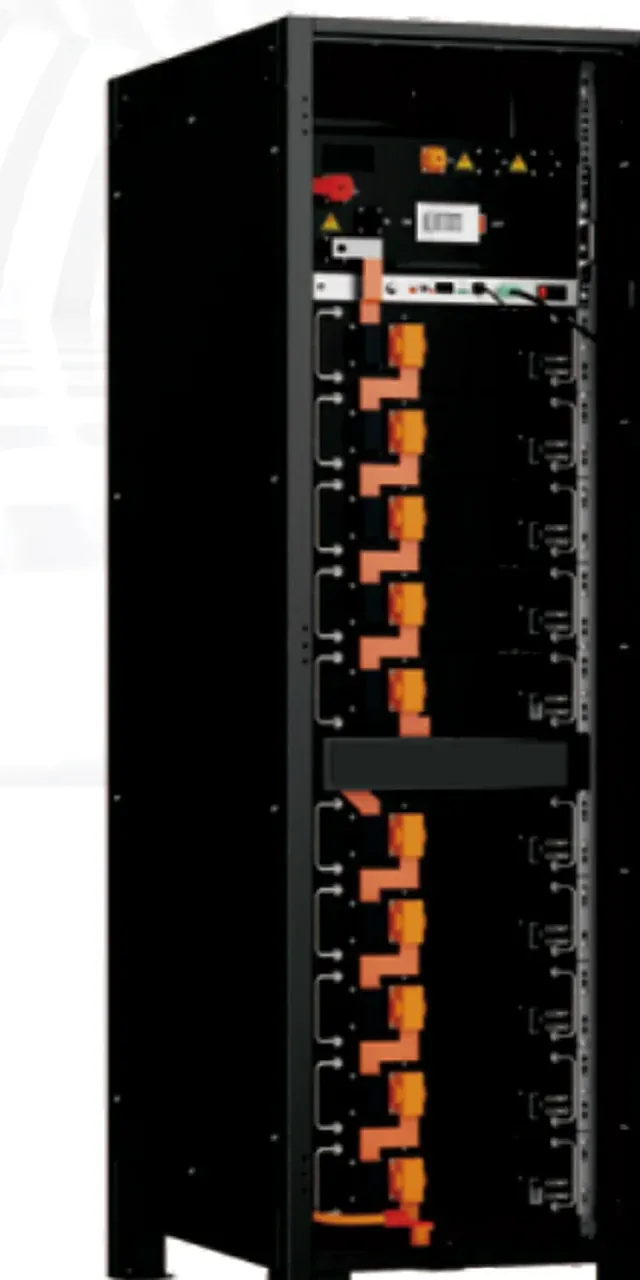

204.8V–768V High-Voltage UPS Battery Systems
204.8V–768V LiFePO4 UPS battery cabinet systems configured around power, DC bus voltage, topology, communication and backup time.
High-Voltage UPS Battery System Specifications
A high voltage UPS battery is reviewed as part of the UPS battery cabinet configuration, not as a universal replacement.
Parameter | Configuration scope |
|---|---|
Battery Chemistry | LiFePO4 |
Voltage Range | 204.8V–768V |
Topology | Two-wire / Three-wire, depending on configuration |
Communication | CAN / RS485 / Dry Contact / LCD |
Runtime Classes | 5 / 15 / 30 minutes, depending on configuration |
Installation | Cabinet-based UPS battery system |
When Is a High-Voltage UPS Battery System Used?
Higher-voltage UPS battery systems are reviewed for larger critical-power applications where the UPS DC bus voltage, required power and backup duration require a cabinet-level battery configuration.
What Determines UPS Battery Runtime?
Required runtime depends on the actual critical load, UPS efficiency, DC bus voltage, battery capacity, discharge rate and selected system configuration. Nominal battery capacity alone does not guarantee the required backup time.
Critical Load
UPS Efficiency
DC Bus Voltage
Battery Capacity
Discharge Rate
System Configuration
High-Voltage UPS Battery Applications
The following application types are reviewed for configuration; they are not claims of completed LinkPower projects.
- Large Data Centers
- Industrial Facilities
- Financial & Server Systems
- Infrastructure
- Industrial Control
- Critical Power Systems
BUYER INPUTS
What Information Is Required?
- UPS Brand / Model
- Rated Power
- DC Bus Voltage
- Two-wire / Three-wire Requirement if known
- Critical Load
- Required Runtime
- Charging Parameters
- Communication Requirement
- Quantity
How Is UPS Compatibility Confirmed?
Compatibility is reviewed against the UPS model, DC bus voltage and operating window, topology, charging parameters, required discharge power, runtime target and communication requirements.
High-Voltage UPS Battery FAQ
Does a runtime class guarantee that backup duration for my site?
No. The 5, 15 and 30 minute classes depend on the selected configuration and actual critical load. The required runtime must be confirmed for the project.
How is a data center UPS battery configured?
Review the UPS model, rated power, DC bus voltage, actual critical load, runtime target, topology, charging parameters and communication requirements together.
Can a high voltage lithium battery for UPS applications work with any UPS?
No universal compatibility claim is made. The electrical operating window, two-wire or three-wire topology, charging and discharge requirements, and communication interface must be confirmed.
Start at the UPS battery systems hub, compare low-voltage UPS lithium battery systems, or review LinkPower energy storage products.
Request a High-Voltage UPS Battery Configuration
Send your UPS model, rated power, DC bus voltage and required backup time for configuration review.
